Working height

20.8m (68ft 6in)

Unrestricted working
outreach at 250kg

13m (42ft 8in)

45% Gradeability

4WD for rough terrain

GVW Only 6,640kg

Lightest in its class

Superb Manoeuvrability

3.89m outside turning radius

ToughCage with SiOPS® as Standard

Multi-award winning operator protection

Unique Suspension System

Improving traction & comfort

Swing-Out Engine Tray

Quick & easy to service

Platform Rotation
& Fly-Boom

Improved access to
applications

HR21 Hybrid 4×4 is the winner of the International Powered Access Federation’s IAPA Product of the Year 2018 award.

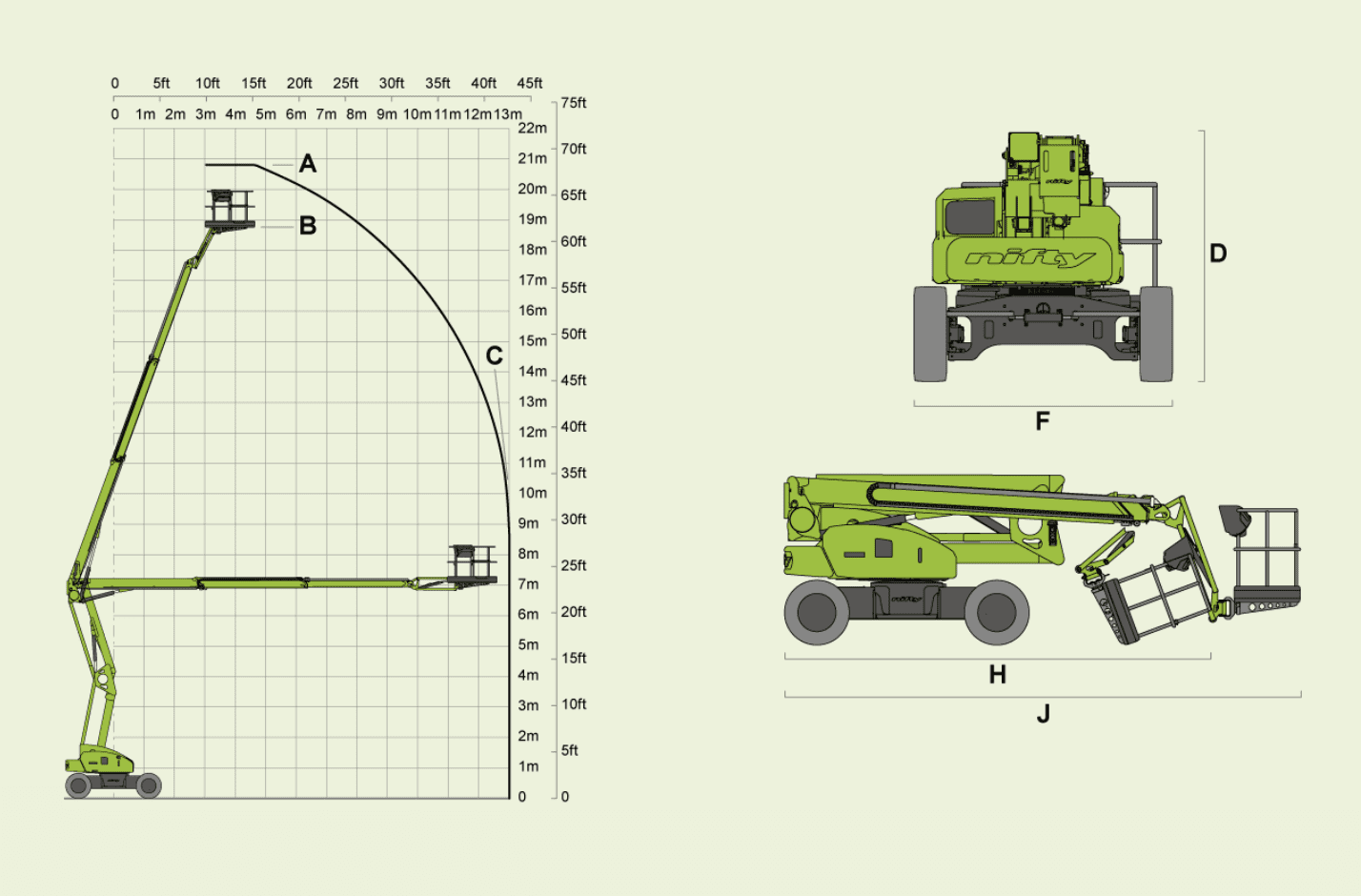

The Height Rider 21 Hybrid 4×4 (HR21 Hybrid 4×4) self-propelled cherry picker will lift 2 persons and their tools to a working height of 20.8m or a working outreach of 13m. Proportional controls deliver smooth, measured operation while 160º cage rotation and a 150º fly-boom allow precise positioning anywhere in its vast working envelope.

Weighing just 6,640kg, the HR21 Hybrid 4×4 combines innovative weight and space saving design with an excellent turning circle to deliver outstanding manoeuvrability on-site and lower transportation costs.

The HR21 Hybrid 4×4’s 1.8m wide ToughCage (steel cage option available) offers more space for materials and tools and the tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage also give additional strength and durability, while the multi-award-winning SiOPS® provides additional operator protection.

The HR21 Hybrid 4×4 is available with true Hybrid power

The Hybrid option incorporates a smaller, power-optimised STAGE V compliant engine supported by the machine’s battery pack for when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative ‘Diesel Re-Gen’ feature also recharges the batteries without a mains power source, giving a ‘fast-charge’ whenever the machine is idle and the engine running. In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use, or for quiet, clean operation.

For more information regarding the HR21 Hybrid 4×4 or any other self-propelled boom lift, including the diesel version, HR21 4×4,  HR17 4×4 and HR28 4×4, please contact us.
