HR12N

HR12N | 12.2m Self Propelled

Working height

12.2m (40ft)

Working outreach

6.1m (20ft)

Telescopic Upper Boom

Greater accuracy when
positioning platform

1.5m Chassis Width

Improved narrow aisle access

Weight Under 3.5 Tonnes

Low cost transportation

Fully Proportional
Hydraulic Controls

Simple, reliable &
easy to maintain

Bi-Energy Available

Optimising Utilisation

The Height Rider 12 Narrow (HR12N) self propelled boom lift is one of the most versatile and reliable machines in its class.

It is specifically designed to give maximum reach performance from the lightest, most compact base possible. A telescopic upper boom gives the HR12N self propelled boom lift improved accuracy when positioning the platform and superb manoeuvrability makes it ideal for a wide range of applications.

With a 1.50m (4ft 11in) narrow chassis, the HR12N self propelled boom liftis ideal for working in factories, warehouses or anywhere that space is restricted.

Its Bi-Energy option allows the HR12N self propelled boom lift to work for extended periods inside and outside, making it the perfect all-rounder.

For more information regarding the HR12N or any other self propelled boom lift, including the HR12 4×4 and HR15N, please contact us.

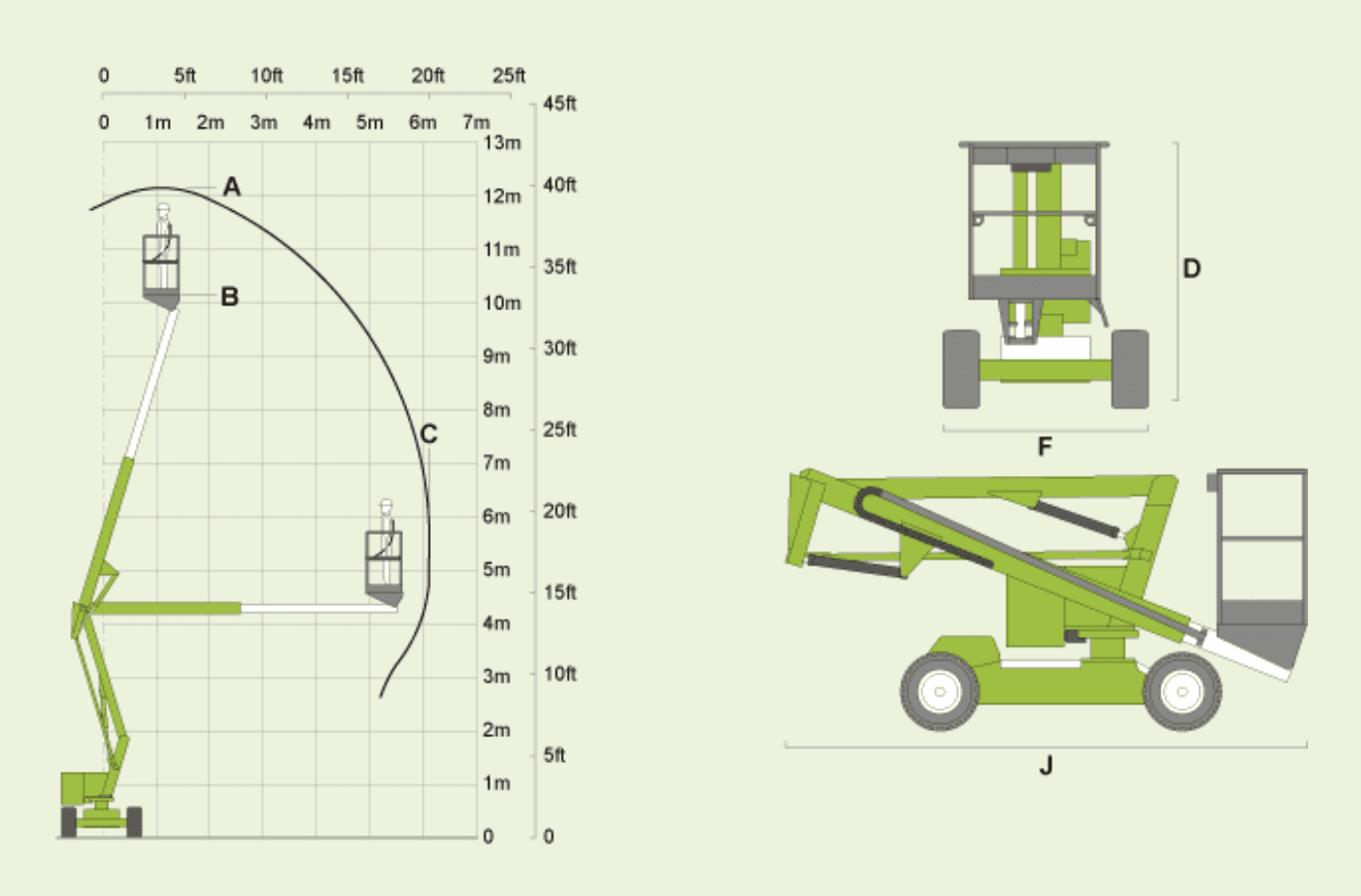

icon_workingheight

Working Height (A)

12.2m (40ft)

icon_workingoutreach

Working Outreach (C)

6.1m (20ft)

icon_platformheight

Platform Height (B)

10.2m (33ft 6in)

icon_machineheight_sp

Machine Height (D)

1.9m (6ft 3in)

icon_machinelength_sp

Machine Length (J)

4.1m (13ft 5in)

icon_travelspeed

Travel Speed

3.4kph (2.1mph)

icon_machinewidth_sp

Machine Width (F)

1.5m (4ft 11in)

icon_turningradius

Turning Radius

4.2m (13ft 9in)

icon_gradeability_sp

Gradeability

25% (14°)

icon_cagesize

Cage Size

1.1m x 0.65m
(3ft 7in x 2ft 2in)

icon_minweight

Min Weight

3,435kg (7,575lbs)

icon_safeworkingload

Safe Working Load

200kg (440lbs)

icon_poweroptions

Power Options

Battery only
Petrol, Diesel or LPG only
Bi-Energy (Engine & Battery)
